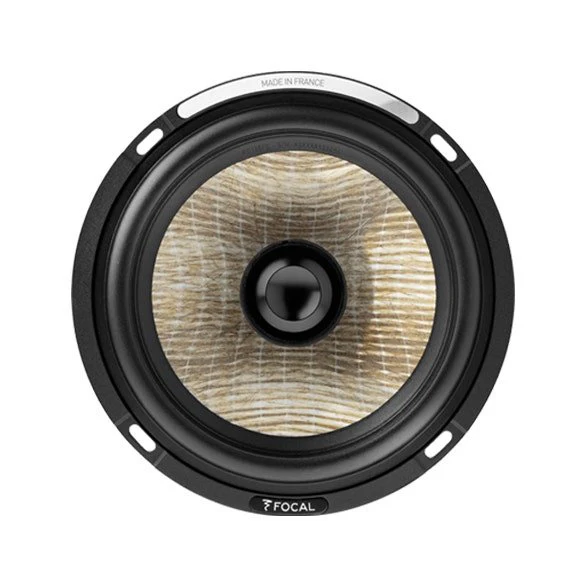

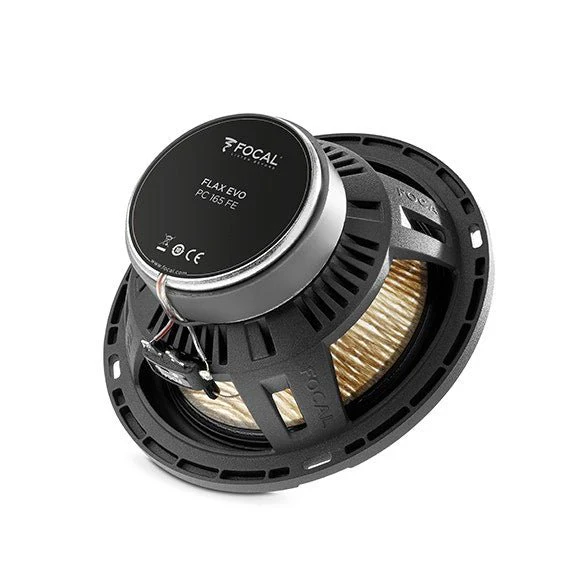

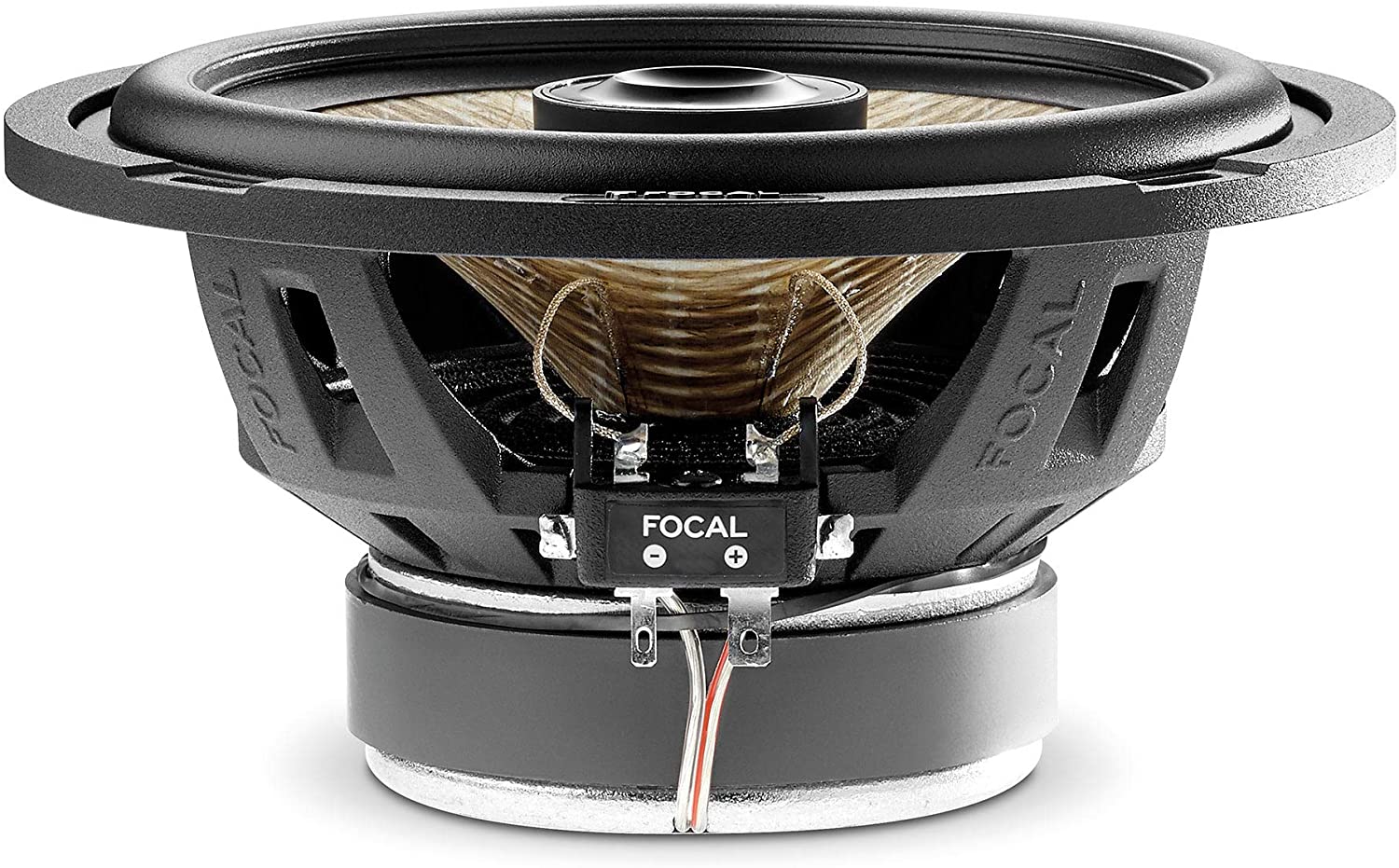

Focal PC 165 FE Flax Series 6.5" Coaxial Speakers

Focal PC 165 FE Flax Series Coaxial Speakers

Designed with exclusive Focal innovations, the PC 165 FE kit delivers true hi-fi sound with an impressive soundstage. A perfect fusion of technology and design, it enhances every in-car listening experience.

Exceptional Sound Dynamics
The TAM inverted dome tweeters with an “M” profile provide a wider diffusion angle and enhanced sound definition with minimal directionality. Meanwhile, the Flax woofer cone ensures a natural, neutral, and transparent sound, creating a well-balanced and immersive soundstage.

Iconic Flax Cone for Superior Audio
Crafted from high-quality French flax fiber, the Flax membrane offers both aesthetic appeal and top-tier acoustic performance. With rich midrange reproduction and precise bass response, it delivers a dynamic, powerful, and crystal-clear sound.

Premium Build & Installation
Featuring an engraved aluminum chassis and meticulous craftsmanship, the PC 165 FE provides a premium, stylish installation that blends seamlessly with any modern vehicle interior.

Advanced Technologies

Flax Membrane – Precision & Purity
As the core component of any speaker, the membrane is crucial to sound quality. After five years of research, Focal introduced its patented Flax Cone in 2013. This innovative membrane consists of a high-quality French flax fiber core sandwiched between two thin glass fiber sheets. Its lightweight structure enables dynamic response, its rigidity ensures controlled bass, and its damping properties deliver a neutral and uncolored sound—an iconic Focal innovation in high-fidelity audio.

TAM Tweeter – Wide-Angle Sound Dispersion
The shape and material of a tweeter significantly impact sound reproduction. Designed and manufactured in France, the TAM tweeter features an aluminum/magnesium inverted dome with an “M” profile, enhancing rigidity for impeccable harmonic balance and detailed treble. A built-in decompression chamber minimizes rear wave interference, ensuring pristine clarity.

TMD Suspension – Stability & Vibration Control
Beyond diaphragm innovation, Focal engineers developed the Tuned Mass Damper (TMD) suspension, introduced in 2015. By integrating precisely positioned toroidal weights, this technology stabilizes the surround, reducing unwanted vibrations and enhancing midrange clarity between 1 kHz and 2 kHz. The result is a purer, more accurate sound reproduction.

The Focal PC 165 FE speakers are designed for audiophiles who demand high-fidelity sound, cutting-edge innovation, and premium craftsmanship—all in one sleek package.

Specifications
Nominal power: 70W
Maximum power: 140W
Sensitivity: 90dB
Nom. impedance: 4Ω
Cone: Flax
Surround: TMD - Rubber
DC resistance: 3.3Ω
VC diameter: 25mm 1"
Former: Kapton
Layers: 2
Wire: Copper
Net weight: 1,150g 2.54lbs
Frequency response: 60-28kHz
Crossover: 6dB/oct

Parameters
Rdc: 3.3Ω
Fs: 64.7Hz
Mms: 13.6g
Cms: 0.44mm/N
Vas: 10l
Qts: 0,87
Qes: 0,96
Qms: 8,52
Bxl: 4.48N/A
Sd: 127cm2
SPL: 86.5dB
Xmax: 4mm 144
