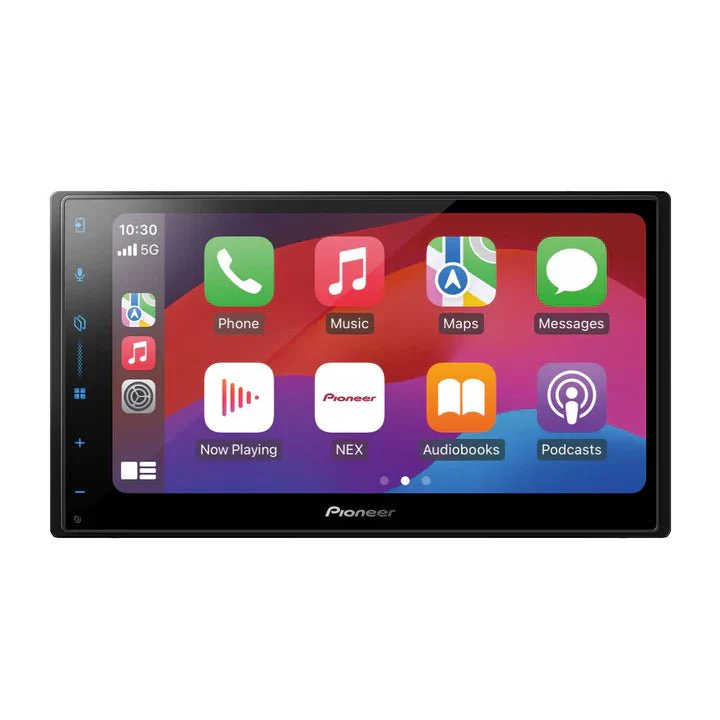

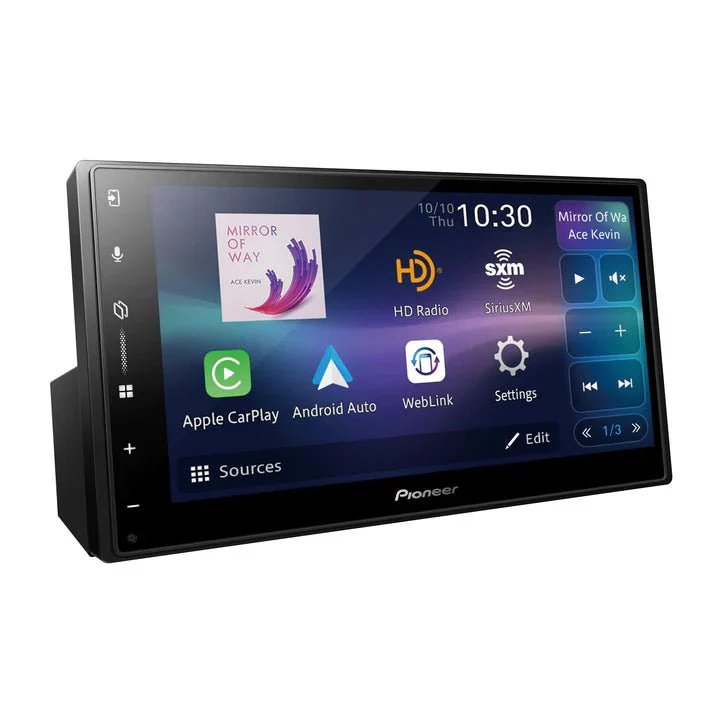

Pioneer DMH-2000NEX Media Receiver
Pioneer DMH-2000NEX Media Receiver
The DMH-2000NEX 6.8-inch display offers cutting-edge connectivity solutions tailored for today's smartphone-centric lifestyle. Featuring a capacitive touchscreen display on a 2-DIN L-Shaped Chassis, it ensures flexible installation for seamless integration into your vehicle's dash. Key features include built-in Bluetooth®, Android Auto™, Apple CarPlay®, Weblink® and Amazon Alexa, SiriusXM-Ready™ and built-in HD Radio™.
6.8 Inch WVGA Touchscreen (Capacitive)
Upgrade your ride with a capacitive WVGA touchscreen The Display with built-in LED backlight, color customization, and illumination timer, dimmer setting, and brightness control.
ARM Cortex® processor
This AV receiver uses a highly integrated system-on-chip (SoC) for In-Vehicle Infotainment applications based on an ARM Cortex® processor. The main processor works in partnership with an N13 coprocessor and integrates 1 GB of DDR2 internal memory to achieve high-quality audio/video performance and high-quality user interfaces. It is manufactured with an advanced silicon process and offers higher CPU performance and DRAM bandwidth than typical processors.
QuickSwipe Access
Minimize distractions with the new direct access buttons located on the left side of the unit. Perform quick interactions like making calls, initiate voice actions, go to app screens, and return to the main menu in 1-click instead of 2 to 3 times more interactions.
ShortCut Keys
Change the layout of your main menu and make it the way you like and put aside the things you don’t need. Pioneer’s new NEX receivers are offering a host of options for AV sources and other car AV features. But it is not because this offer is large that it must be heavy on visuals and complicated for the access.
Apple CarPlay (Wired)
This receiver features Apple CarPlay, the smarter, safer and more fun way to use your iPhone® in the car. Apple CarPlay gives iPhone users an incredibly intuitive way to make calls, use Maps, listen to music, and verbally send and listen to messages with just a word or a touch. Apple CarPlay requires iPhone 5 device or newer with the latest version of iOS.

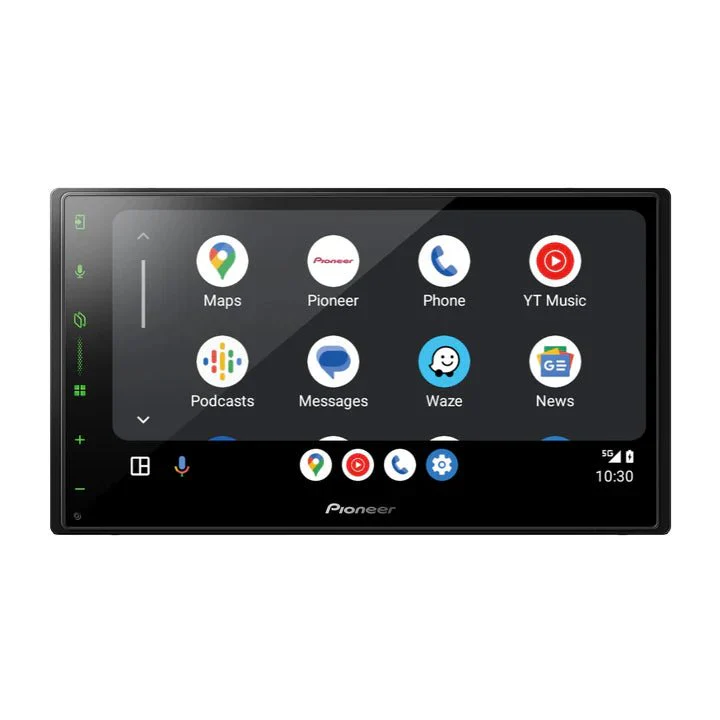

Android Auto™ (Wired)
This receiver features Android Auto, which extends the Android platform into the car in a way that’s purpose-built for driving. Android Auto automatically brings you useful information and organizes it into simple cards that appear just when they’re needed. It’s designed to minimize distraction so you can stay focused on the road ahead. Android Auto is compatible with Android phones running Android 5.0 (Lollipop) or later. Android Auto may not be available on all Android smartphones.
Weblink® Smartphone Interface (Wired)
WebLink enables smartphone app projection from many popular Android® and iOS® devices to in-vehicle touch displays. WebLink for Pioneer AV receivers expands in-car entertainment with an amazing array of apps.
Pioneer Vozsis with Alexa app
Invite Amazon's versatile voice assistant into your car with a WebLink-compatible Pioneer in-dash multimedia receiver and the Vozsis with Alexa app. With a tap of the touchscreen and your voice, access your Amazon Prime Music, Audible audiobooks, Kindle library, Flash Briefings, and more to stay informed and entertained during your drive.
Bluetooth
This receiver makes hands-free phone calls simple. Pioneer’s included external microphone provides crystal clear sound. Stream music, podcasts, audiobooks, and more from your compatible phone or other Bluetooth® devices.
Siri® Eyes Free - touchscreen
Simply touch a NEX touchscreen and Siri listens through the NEX unit's external microphone and answers requests over the vehicle's speakers, helping you keep your eyes on the road and your hands on the wheel. (For select iPhones.)
HD Radio
This Pioneer Receiver has a built-in HD Radio tuner, broadcasting in clear digital quality. Many stations offer extra local FM channels to enjoy more music, news, and sports – all 100% subscription FREE! Your FM and AM stations now have crystal-clear reception with no audio distortion.
SiriusXM Ready
Your Favorite Stations Wherever You Go, Wherever you are, this Receiver is SiriusXM- Ready® so you can get over 140 channels, including commercial-free music, plus the best sports and live events, comedy, news, exclusive talk, and entertainment. SiriusXM programming is received through the SiriusXM Connect Vehicle Tuner (SiriusXM SXV300 Tuner sold separately, SiriusXM subscription required). To learn more or to purchase the tuner, visit SiriusXM.
Back up camera input (1-camera)
Back up safely in any crowded parking area. Install a rear-view camera to use the receiver’s built-in parking guides for easy parking, with adjustable parking lines and full screen image for ease of use.
Wired Remote Input
This receiver integrates an input specifically designed to connect a third-party interface (optional) which will allow you to keep the key functions from the steering wheel control buttons of your vehicle. (if applicable)
iDataLink Maestro (RR & RR2)
Universal radio replacement interface. The Maestro RR and RR2 connect to iDatalink-compatible radios to enhance your multimedia experience with exclusive gauges, vehicle info, parking assistance, climate control, and radar detection screens while retaining the factory infotainment features you love, such as steering wheel controls, voice commands, and more (sold separately).
FLAC
Your love of high-res audio does not need to stop at the front door. Enjoy FLAC files in your vehicle without the need to convert. Pioneer's NEX in-dash receivers were the first in the industry to offer playback of files encoded as high-res FLAC up to 192kHz/24 bit and provide playback output at CD quality. With Pioneer, your high-res FLAC is no longer confined to your home hi-fi system - put your music on the move.
Velvet Sound™ For Cars
VELVET SOUND is both the brand and philosophy of AKM's highest tier of audio devices. An authentic listening experience must be free of noise and distortion. VELVET SOUND technology strives to eliminate those distractions in the pursuit of Real Live Sound: a faithful re-creation of the original experience, as if you were there.
The dedicated audio DSP used in this NEX model is a highly integrated digital signal processor, including a 24-bit stereo ADC with input selector, three 24-bit stereo DACs, four stereo sampling rate converters supporting sampling frequencies up to 192kHz, and an audio DSP.
Flexible Audio Output Management
The Pioneer Standard (2-Way) / Network (3-Way) function allows you to divide the audio signal into different frequency bands. You can then make precise adjustments with low-pass, high-pass, and band-pass filters, as well as level, phase, and other parameters to match the characteristics of each speaker unit. Select STD for a Sub/Rear/Front setup, or NTW for a Low/Mid/High setup.
Audio Equalizer
The 13-band equalizer allows for detailed adjustments to your acoustic settings. This lets you tailor the equalization to match your car's interior acoustics and speaker characteristics as desired. Multiple EQ presets ensure that even users with basic acoustic knowledge can learn and enjoy the benefits of using an equalizer.
Time alignment
This feature allows for delay time and synchronizing from each speaker to be adjusted to correct any phase mismatches in the sound resulting from the listening position. No need for any acoustics degree to do the job, simply measure the distance between your listening position and the speakers, then enter these measurements into the Pioneer receiver.
Specifications
PRODUCT PERFORMANCE
Continuous Power Output: 22 W x 4-Channel
Load Impedence Allowance: 4 Ohm (4 Ohm to 8 Ohm Allowable)
Max Power Output: 50 W x 4-ch 4 ohm , 50 W X 2-ch 4 ohm
Rca Preamp Outputs: 6-ch
Rca Preout Voltage: 4V
Rms Power Output (Cta-2006): 14 W RMS x 4-ch 4 ohm
GENERAL
Detachable Face Security: Fixed
Multi-Language Display: English, French, Spanish Portuguese, Chinese (Simplified)
Music Browser: USB
Steering Wheel Control Ready (Adapter Sold Separately): Yes
DISPLAY
Back Light: LED
Brightness Control: Yes
Color Customization: 5 key colors
Device (Non-DIN/Modular Unit): 2-DIN L-Shaped Chassis
Dimmer: Automatic with vehicle illumination, Manual
Display Off Mode: Yes
Home Screen Customization: Yes
Monitor Mechanism: Fixed
Resolution: WVGA (800 x 480)
Screen Size/Aspect Ratio: 6.8"/16:9
Touch Screen: Capacitive
NAVIGATION
External GPS Antenna: Yes
BLUETOOTH
Advanced Audio Distribution Profile (A2DP): Yes
AVRCP: 1.6
Built-in Bluetooth®: Yes
Hands-Free: true
Microphone Included: Included
Phone Registation: 5-phone
Secure Simple Pairing (SSP): Yes
Serial Port Profile (SPP): Yes
TUNER
Best Station Memory: Yes
HD Radio™: Built In
Local Seek tuning: Yes
Presets: 18 FM 12 AM
PS (Preset Scan): Yes
RDS: Yes
SiriusXM-Ready™ (Tuner Sold Separately): Yes
INTEGRATION
Amazon Alexa: Paired with Pioneer Vozsis
Android Auto™: Wired USB Connection
Apple® CarPlay: Wired USB Connection
Mirroring: USB-Android Phone Only
Mobile Operating System: Android, Apple iOS
Pandora®: With Apple CarPlay or Android Auto
Pioneer App Compatibility: Vozsis Android, Vozsis iPhone
Siri® Eyes Free (VR) (Internet Required): iPhone Only
Spotify: With Apple CarPlay or Android Auto
Voice Control: Yes
Weblink: Version 2.0
DIGITAL MEDIA PLAYBACK
Audio Playback via USB: WMA Audio Playback, MP3 Audio Playback, WAV Audio Playback (Hi-Res), AAC Audio Playback, FLAC Audio Playback (Hi-Res)
Audio Video Playback via USB: .3gp, .avi, .divx, .f4V, H.263, H.264, .m4v, .mkv, .mov, .mp4, .mpg/mpeg, .wmv/.asf
Image Display Via USB: BMP, JPEG, PNG
AUDIO
Audio Bass Boost: Yes
Balance: Yes
Built-in Amplifier: MOSFET 50 W x 4
Crossover Network Mode: HPF/Band Pass/LPF
Crossover Standard Mode: HPF/LPF
Customizable Graphic Equalizer: 13 Band
DA Converter: 24 Bit
Digital Signal Processor: Built In
Easy EQ (EEQ) Preset Equalizer: Yes
Listening Position Selector: Yes
Loudness: High/Mid/Low/Off
Speaker Output: 4-ch
Subwoofer Control: Yes
EXPANDABILITY
Audio Video Inputs: Input 1 - Backup Camera Dedicated, Audio/Video AUX (Minijack)
Firmware upgradability: Yes
OEM Integration: iDatalink Maestro RR, iDatalink Maestro RR2
OTA Update Compatabile: Yes
Parking Assist Lines: Yes
USB: Single Rear Type-A (5V, 1-1/2 A)
USB Direct Control for iPhone®: 5s and newer
